At Rajat Steel & Engg. Co., we are a leading supplier of Monel Alloy 400 (UNS N04400) pipes in India, offering high-performance piping solutions for critical applications. Monel 400 is a nickel-copper alloy known for its exceptional resistance to seawater, acids, and corrosive chemicals, making it ideal for marine, chemical processing, oil & gas, and heat exchanger systems. Our Monel pipes are available in seamless and welded forms, manufactured to international standards such as ASTM B165, ensuring high strength, durability, and reliability. We provide a wide range of sizes and thicknesses to meet your specific project needs with timely delivery and assured quality.
when these pipes undergo hot and cold working in controlled amount along with proper thermal treatment 400 Monel Hexagonal Pipe is developed which is superior in quality. Appropriate filler metals are used in the welding process of the ASTM B165 Alloy 400 Seamless Pipe. The alloy in Monel alloy 400 Rectangular Pipe can get contaminated and brittle if not cleaned properly.

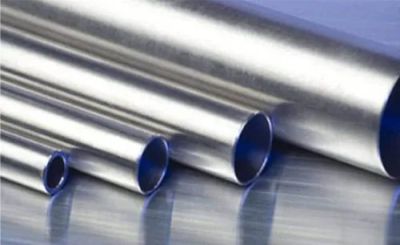

400 Monel Bright Annealed Tubes are made under a temperature of 926 degrees C. Most of the money 400 tube manufacturers have noticed that Alloy 400 ERW Tubes have the ability to resist hydrochloric and hydrofluoric acid.
Monel 400 Decorative Tube displays mechanical properties at an extremely high temperature of 1020 degrees C to a low temperature of zero degrees. ASTM B163 Monel 400 seamless tubes are resistant to alkalis as well. din 2.4360 High-Pressure Tube has a high content of copper due to which the presence of nitric acid and ammonia make it Vulnerable.
Stainless steel pipes are cheaper compared to Monel pipes. However, Monel 400 Pipe displays good weldability with a decent resistance to corrosion. 400 Monel alloy Square pipe is resistant to salt as well as caustic solutions. The alloy becomes tough while machining thus making machinability of the WERKSTOFF NR. 2.4360 ERW Pipe difficult. An extensive range of mechanical properties can be produced by fabrication ASTM B725 UNS N04400 Welded Pipe.
| Category | Details |
|---|---|
| ASTM Specification | AMS 4574, ASTM B775, ASTM B165, ASTM B829, ASTM B163, ASTM B725, ASTM B751, ASTM B730 |
| International Specification | VdTUV 2635, DIN 17752 |
| Standard | EN, DIN, AISI, AMS, SAE, DTD, DS, NF, JIS, ASME, ASTM, GB, TOCT |
| Seamless Tube Size | 3.35 mm To 101.6 mm OD |
| Size of Seamless Pipe | Wall thickness: 0.05–20 mm, OD: 4–219 mm |
| Size of Welded Pipe | 5.0 to 1219.02 mm |
| Size of EFW Pipe | 5.0 to 1219.02 mm |
| Welded Tube Size | 6.35 mm To 152 mm OD |
| BWG & SWG | 18 SWG, 14–20 SWG, 12–16 SWG, 10 SWG |
| Value Added Service | Expansion and Draw to length & size, Polish (Commercial and Electro), Machining, Annealed & Pickled, Bending, etc. |
| Pipe Schedule | STD, SCH120, SCH20, SCH10S, SCH30, SCH40, SCH140, SCH40S, SCH160, XS, SCH60, SCH5, SCH10, SCH80, XXS, SCH80 |
| Tubing Wall Thickness | 0.020"–0.220" (custom thicknesses available) |
| Finish | AP (Annealed & Pickled), BA (Bright & Annealed), NO.1, 2B, Polished, MF, HL, NO.4, Mirror, 8K |
| End | Plain End, Beveled End, Threaded Pipe, Screwed Ends |
| Length | Standard & Cut Length, Single Random, Double Random Pipe |
| Form | Hydraulic, Rectangular, Coiled, Square, Hollow, Round, Straight, “U” Shape, Pan Cake Coils, Boiler, LSAW |
| Application | Dairy Pipe, Oil Pipe/Tube, Gas Pipe/Tube, Fluid Pipe/Tube, Boiler Tube, Heat Exchanger Tube |
| Type | ERW, Seamless, EFW, Fabricated, Welded, DOM, CDW, CEW Monel 400 Pipe |
| Marking | Heat No., Thickness, OD, Grade, Standard Length (or as per need) |
| Specialize In | Large Diameter Monel 400 Pipe, Nickel NW 2200 Capillary Tube, ASTM B165 Alloy 400 Heat Exchanger & Condenser Tube |
| Suppliers |
Sanyo Special Steel (Japan), Sumitomo Metals (Japan), Kobe Special Tube (Japan), Seah Steel Corporation (Korea), Schoeller Bleckmann (Austria), Tubacex Tubos Inoxidables S.A. (Spain), Nippon Steel Corporation (Japan) |
| Test Certificate | Under Third Party Inspection, Manufacturer Test Certificate |
| Manufacturing Technique | Hot Drawn, Cold Drawn, Solid Solution, Bright Annealed, Hot Extruding |
|
Pipe WT
mm |
ASTM B165 Alloy 400 Pipe OD
mm |
Sch
|
in.0
|
Kg/m
|
|---|---|---|---|---|
|
1.065
|
13.072
|
10S
|
1/4
|
0.050
|
|
2.024
|
13.072
|
40S
|
1/4
|
0.064
|
|
3.002
|
13.072
|
80S
|
1/4
|
0.081
|
|
1.065
|
17.015
|
10S
|
3/8
|
0.064
|
|
2.031
|
17.015
|
40S
|
3/8
|
0.086
|
|
3.020
|
17.015
|
80S
|
3/8
|
1.012
|
|
2.011
|
21.034
|
10S
|
1/2
|
1.002
|
|
2.077
|
21.034
|
40S
|
1/2
|
1.029
|
|
3.073
|
21.034
|
80S
|
1/2
|
1.065
|
|
2.011
|
26.067
|
10S
|
3/4
|
1.030
|
|
2.087
|
26.067
|
40S
|
3/4
|
1.071
|
|
3.091
|
26.067
|
80S
|
3/4
|
2.023
|
|
2.077
|
33.040
|
10S
|
1
|
2.013
|
|
3.038
|
33.040
|
40S
|
1
|
2.054
|
|
4.055
|
33.040
|
80S
|
1
|
3.029
|
|
6.0352)
|
33.040
|
160
|
1
|
4.030
|
|
2.077
|
42.016
|
10S
|
1¼
|
2.073
|
|
3.056
|
42.016
|
40S
|
1¼
|
3.044
|
|
4.085
|
42.016
|
80S
|
1¼
|
4.053
|
|
6.0352)
|
42.016
|
160
|
1¼
|
5.069
|
|
2.077
|
48.026
|
10S
|
1½
|
3.016
|
|
3.068
|
48.026
|
40S
|
1½
|
4.011
|
|
5.008
|
48.026
|
80S
|
1½
|
5.049
|
|
2.077
|
60.033
|
10S
|
2
|
3.099
|
|
3.091
|
60.033
|
40S
|
2
|
5.052
|
|
5.054
|
60.033
|
80S
|
2
|
7.060
|
|
8.0742)
|
60.033
|
160
|
2
|
11.029
|
|
3.005
|
73.003
|
10S
|
2½
|
5.035
|
|
5.016
|
73.003
|
40S
|
2½
|
8.077
|
|
7.001
|
73.003
|
80S
|
2½
|
11.059
|
|
3.005
|
88.090
|
10S
|
3
|
6.056
|
|
5.049
|
88.090
|
40S
|
3
|
11.047
|
|
7.062
|
88.090
|
80S
|
3
|
15.051
|
|
11.0132)
|
88.090
|
160
|
3
|
21.067
|
|
3.005
|
101.060
|
10S
|
3½
|
7.053
|
|
5.074
|
101.060
|
40S
|
3½
|
13.078
|
|
8.008
|
101.060
|
80S
|
3½
|
18.092
|
|
3.005
|
114.030
|
10S
|
4
|
8.050
|
|
6.002
|
114.030
|
40S
|
4
|
16.032
|
|
8.056
|
114.030
|
80S
|
4
|
22.067
|
|
13.0492)
|
114.030
|
160
|
4
|
34.005
|
|
6.055
|
141.030
|
40S
|
5
|
22.010
|
|
9.053
|
141.030
|
80S
|
5
|
31.044
|
|
15.0882)
|
141.030
|
160
|
5
|
49.087
|
|
3.04
|
168.028
|
10S
|
6
|
14.004
|
|
7.011
|
168.028
|
40S
|
6
|
28.069
|
|
10.097
|
168.028
|
80S
|
6
|
43.021
|
|
14.027
|
168.028
|
120
|
6
|
54.075
|
|
18.0262)
|
168.028
|
160
|
6
|
68.059
|
|
8.018
|
219.008
|
40S
|
8
|
43.020
|
|
12.07
|
219.008
|
80S
|
8
|
65.063
|
|
18.023
|
219.008
|
120
|
8
|
91.030
|
|
23.0012)
|
219.008
|
160
|
8
|
112.097
|
| Regular Wall (RW) mm | Gauge | Extra Thin Wall (XTW) mm | Outside Diameter Tolerance mm | Ultra Thin Wall (UTW) mm | Thin Wall (TW) mm |
| 0.0064 to 0.0089 | 30 | 0.0304 to 0.0317 | |||
| 0.0064 to 0.0089 | 29 | o.0330 to 0.0342 | |||
| 0.0076 to 0.0102 | 28 | 0.0355 to 0.0368 | |||
| 0.0089 to 0.0115 | 27 | 0.0406 to 0.0419 | 0.0064 to 0.0089 | ||
| 0.0089 to 0.0114 | 26 | 0.0457 to 0.0469 | |||
| 0.0115 to 0.0140 | 25 | 0.0508 to 0.0520 | 0.0089 to 0.0114 | ||
| 0.0114 to 0.0140 | 24 | 0.0558 to 0.0571 | 0.0051 to 0.0102 | 0.0089 to 0.0114 | |
| 0.0140 to 0.0165 | 23 | 0.0635 to 0.0647 | 0.0051 to 0.0102 | 0.0089 to 0.0114 | |
| 0.0140 to 0.0165 | 22 | 0.0077 to 0.0102 | 0.0711 to 0.0723 | 0.0051 to 0.0102 | 0.0096 to 0.0121 |
| 0.0140 to 0.0165 | 21 | 0.0812 to 0.0825 | 0.0051 to 0.0102 | 0.0102 to 0.0127 | |
| 0.0108 to 0.0165 | 20 | 0.0901 to 0.0914 | 0.0108 to 0.0134 | ||
| 0.0166 to 0.0216 | 19 | 0.0070 to 0.0108 | 1.0054 to 1.0079 | 0.0102 to 0.0140 | |
| 0.0191 to 0.0241 | 18 | 0.0083 to 0.0121 | 1.0257 to 1.0282 | 0.0051 to 0.0102 | 0.0127 to 0.0165 |
| 0.0177 to 0.0229 | 17 | 0.0083 to 0.0127 | 1.0460 to 1.0485 | 0.0057 to 0.0102 | 0.0115 to 0.0152 |
| 0.0204 to 0.0254 | 16 | 0.0096 to 0.0133 | 1.0638 to 1.0663 | 0.0070 to 0.0121 | 0.0127 to 0.0165 |
| 0.0204 to 0.0254 | 15 | 0.0096 to 0.0134 | 1.0816 to 1.0841 | 0.0070 to 0.0121 | 0.0127 to 0.0165 |
| 0.0216 to 0.0292 | 14 | 0.0114 to 0.0165 | 2.0082 to 2.0133 | 0.0076 to 0.0134 | 0.0165 to 0.0229 |
| 0.0267 to 0.0343 | 13 | 2.0387 to 2.0438 | 0.0191 to 0.0267 | ||
| 0.0267 to 0.0321 | 12 | 2.0743 to 2.0749 | |||
| 0.0293 to 0.0368 | 11 | 3.0023 to 3.0073 | 0.0216 to 0.0292 | ||
| 0.0318 to 0.0394 | 10 | 0.0216 to 0.0292 | 3.0378 to 3.0429 |
| DIMENSIONS | WEIGHT PER | WALL | DIMENSIONS | WEIGHT PER | WALL | |
|---|---|---|---|---|---|---|
| (MM) | METRE (KG) | (MM) | (MM) | METRE (KG) | (MM) | |
| 12.07 x 12.07 | 0.044 | 1.020 | 40 x40 | 1.049 | 1.020 | |
| 12.07 x 12.07 | 0.055 | 1.050 | 40 x40 | 1.085 | 1.050 | |
| 15 x 15 | 0.053 | 1.020 | 40 x40 | 2.045 | 2.000 | |
| 15 x 15 | 0.065 | 1.050 | 40 x40 | 3.075 | 3.000 | |
| 20 x 20 | 0.071 | 1.020 | 50 x50 | 2.032 | 1.050 | |
| 20 x 20 | 0.088 | 1.050 | 50 x50 | 3.008 | 2.000 | |
| 20 x 20 | 1.019 | 2.000 | 50 x50 | 4.065 | 3.000 | |
| 25 x 25 | 0.092 | 1.020 | 60 x60 | 3.071 | 2.000 | |
| 25 x 25 | 1.014 | 1.050 | 60 x60 | 5.049 | 3.000 | |
| 25 x 25 | 1.049 | 2.000 | 70 x70 | 6.053 | 3.000 | |
| 25 x 25 | 2.020 | 3.000 | 80 x80 | 4.098 | 2.000 | |
| 30 x 30 | 1.010 | 1.020 | 80 x80 | 7.053 | 3.000 | |
| 30 x 30 | 1.037 | 1.050 | 100 x 100 | 6.040 | 2.000 | |
| 30 x 30 | 1.084 | 2.000 | 100 x 100 | 9.053 | 3.000 | |
| 30 x 30 | 2.072 | 3.000 | ||||
|
3 1/2" IPS( 4.0000"O.0 D.0)
|
1/8" IPS(.0405"O.0 D.0)
|
|---|---|
|
SCH 40, 10, 160, 80, XXH
|
SCH 40, 80
|
|
4" IPS(4.0500"O.0 D.0)
|
1/4" IPS(.0540"O.0 D.0)
|
|
SCH 40, 10, 160, 80, XXH
|
SCH 40, 10, 80
|
|
5" IPS( 5.0563"O.0 D.0)
|
3/8" IPS(.0675"O.0 D.0)
|
|
SCH 40, 10, 160, 80, XXH
|
SCH 40, 10, 80
|
|
6" IPS(6.0625"O.0 D.0)
|
1/2" IPS(.0840"O.0 D.0)
|
|
SCH 10, 5, 80, 40, 160, 120 XXH
|
SCH 5, 40, 10, 160, 80, XXH
|
|
8 ” IPS(8.0625"O.0 D.0)
|
3/4" IPS(1.0050"O.0 D.0)
|
|
SCH 10, 5, 80, 40, 160, 120 XXH
|
SCH 40, 10, 160, 80, XXH
|
|
10" IPS(10.0750"O.0 D.0)
|
1" IPS:(1.0315′O.0 D.0)
|
|
SCH 10, 20, TRUE 80(.0500), 40, 80 (.0500),
|
SCH 5, 40, 10, 160, 80, XXH
|
|
12" IPS(12.0750"O.0 D.0)
|
1-1/4" IPS(1.0660"O.0 D.0)
|
|
SCH 10, 20, TRUE40(.0406), 40(.0375), SCH80(.0500)
|
SCH 40, 10, 160, 80, XXH
|
|
14" IPS(14.0000"O.0 D.0)
|
1-1/2" IPS(1.0900"O.0 D.0)
|
|
SCH10(.0188), SCH40(.0375)
|
SCH 40, 10, 160, 80, XXH
|
|
16" IPS(16.0000"O.0 D.0)
|
2" IPS(2.0375"O.0 D.0)
|
|
SCH10(.0188), SCH40(.0375)
|
SCH 40, 10, 160, 80, XXH
|
|
18" IPS (18.0000"O.0 D.0)
|
2 1/2" IPS(2.0875"O.0 D.0)
|
|
SCH-40 (.0375)
|
SCH 40, 10, 160, 80, XXH
|
|
3" IPS( 3.0500"O.0 D.0)
|
|
|
SCH 5, 40, 10, 160, 80, XXH
|
| Outside Diameter Tolerance | Over (in.) | Over (mm) | NPS [DN Designator] | Under (in.) | Under (mm) |
|---|---|---|---|---|---|
| 1/64 (0.0015) | 0.04 | — | 1/8 to 1-1/2 [6 to 40], incl | 1/64 (0.0015) | 0.04 |
| 1/32 (0.0031) | 0.08 | — | Over 1-1/2 to 4 [40 to 100], incl | 1/32 (0.0031) | 0.08 |
| 1/16 (0.0062) | 1.06 | — | Over 4 to 8 [100 to 200], incl | 1/32 (0.0031) | 0.08 |
| 3/32 (0.0093) | 2.04 | — | Over 8 to 18 [200 to 450], incl | 1/32 (0.0031) | 0.08 |
| 1/8 (0.0125) | 3.02 | — | Over 18 to 26 [450 to 650], incl | 1/32 (0.0031) | 0.08 |
| 5/32 (0.0156) | 4.00 | — | Over 26 to 34 [650 to 850], incl | 1/32 (0.0031) | 0.08 |
| 3/16 (0.0187) | 4.08 | — | Over 34 to 48 [850 to 1200], incl | 1/32 (0.0031) | 0.08 |
| Avarage Wall inches | Outside Diameter inches | Internal Area (in2) | Inside Diameter inches | D/t Ratio | Tube Cross Sectional Area (in2) |
|---|---|---|---|---|---|
| 0.0020 | 0.0250 | 0.00346 | 0.0210 | 12.050 | 0.00145 |
| 0.0028 | 0.0250 | 0.00296 | 0.0194 | 8.093 | 0.00195 |
| 0.0035 | 0.0250 | 0.00254 | 0.0180 | 7.014 | 0.00236 |
| 0.0049 | 0.0250 | 0.00181 | 0.0152 | 5.010 | 0.00309 |
| 0.0065 | 0.0250 | 0.00113 | 0.0120 | 3.085 | 0.00378 |
| 0.0020 | 0.0375 | 0.00881 | 0.0335 | 18.075 | 0.00223 |
| 0.0028 | 0.0375 | 0.00799 | 0.0319 | 13.039 | 0.00305 |
| 0.0035 | 0.0375 | 0.00731 | 0.0305 | 10.071 | 0.00374 |
| 0.0049 | 0.0375 | 0.00603 | 0.0277 | 7.065 | 0.00502 |
| 0.0065 | 0.0375 | 0.00471 | 0.0245 | 5.077 | 0.00633 |
| 0.0020 | 0.0500 | 0.01662 | 0.0460 | 25.000 | 0.00302 |
| 0.0028 | 0.0500 | 0.01548 | 0.0444 | 17.086 | 0.00415 |
| 0.0035 | 0.0500 | 0.01452 | 0.0430 | 14.029 | 0.00511 |
| 0.0049 | 0.0500 | 0.01213 | 0.0402 | 10.020 | 0.00694 |
| 0.0065 | 0.0500 | 0.01075 | 0.0370 | 7.069 | 0.00888 |
| 0.0083 | 0.0500 | 0.00876 | 0.0334 | 6.002 | 0.01087 |
| 0.0020 | 0.0625 | 0.02688 | 0.0585 | 31.025 | 0.00380 |
| 0.0028 | 0.0625 | 0.02543 | 0.0569 | 22.032 | 0.00525 |
| 0.0035 | 0.0625 | 0.02419 | 0.0555 | 17.086 | 0.00649 |
| 0.0049 | 0.0625 | 0.02181 | 0.0527 | 12.076 | 0.00887 |
| 0.0065 | 0.0625 | 0.01924 | 0.0495 | 9.062 | 0.01144 |
| 0.0083 | 0.0625 | 0.01655 | 0.0459 | 7.053 | 0.01413 |
| 0.0095 | 0.0625 | 0.01486 | 0.0435 | 6.058 | 0.01582 |
| 0.0109 | 0.0625 | 0.01301 | 0.0407 | 5.073 | 0.01767 |
| 0.0028 | 0.0750 | 0.03783 | 0.0694 | 26.079 | 0.00635 |
| 0.0035 | 0.0750 | 0.03632 | 0.0680 | 21.043 | 0.00786 |
| 0.0049 | 0.0750 | 0.03339 | 0.0652 | 15.031 | 0.01079 |
| 0.0065 | 0.0750 | 0.03019 | 0.0620 | 11.054 | 0.01399 |
| 0.0083 | 0.0750 | 0.02679 | 0.0584 | 9.004 | 0.01739 |
| 0.0095 | 0.0750 | 0.02463 | 0.0560 | 7.089 | 0.01955 |
| 0.0109 | 0.0750 | 0.02223 | 0.0532 | 6.088 | 0.02195 |
| 0.0120 | 0.0750 | 0.02043 | 0.0510 | 6.025 | 0.02375 |
| 0.0020 | 0.0875 | 0.05476 | 0.0835 | 43.075 | 0.00537 |
| 0.0028 | 0.0875 | 0.05268 | 0.0819 | 31.025 | 0.00745 |
| 0.0035 | 0.0875 | 0.05090 | 0.0805 | 25.000 | 0.00924 |
| 0.0049 | 0.0875 | 0.04742 | 0.0777 | 17.086 | 0.01272 |
| 0.0065 | 0.0875 | 0.04359 | 0.0745 | 13.046 | 0.01654 |
| 0.0083 | 0.0875 | 0.03948 | 0.0709 | 10.054 | 0.02065 |
| 0.0095 | 0.0875 | 0.03685 | 0.0685 | 9.021 | 0.02328 |
| 0.0109 | 0.0875 | 0.03390 | 0.0657 | 8.003 | 0.02623 |
| 0.0120 | 0.0875 | 0.0316L7 | 0.0635 | 7.029 | 0.02846 |
| 0.0028 | 1.0000 | 0.06999 | 0.0944 | 35.071 | 0.00855 |
| 0.0035 | 1.0000 | 0.06793 | 0.0930 | 28.057 | 0.01061 |
| 0.0049 | 1.0000 | 0.06390 | 0.0902 | 20.041 | 0.01464 |
| 0.0065 | 1.0000 | 0.05945 | 0.0870 | 15.038 | 0.01909 |
| 0.0083 | 1.0000 | 0.05463 | 0.0834 | 12.005 | 0.02391 |
| 0.0095 | 1.0000 | 0.05153 | 0.0810 | 10.053 | 0.02701 |
| 0.0109 | 1.0000 | 0.04803 | 0.0782 | 9.017 | 0.03051 |
| 0.0120 | 1.0000 | 0.04536 | 0.0760 | 8.033 | 0.03318 |
| 0.0134 | 1.0000 | 0.04208 | 0.0732 | 7.046 | 0.03646 |
| 0.0035 | 1.0250 | 1.00936 | 1.0180 | 35.071 | 0.01336 |
| 0.0049 | 1.0250 | 1.00423 | 1.0152 | 25.051 | 0.01849 |
| 0.0065 | 1.0250 | 0.09852 | 1.0120 | 19.023 | 0.02420 |
| 0.0083 | 1.0250 | 0.09229 | 1.0084 | 15.006 | 0.0316L3 |
| 0.0095 | 1.0250 | 0.08825 | 1.0060 | 13.016 | 0.03447 |
| 0.0109 | 1.0250 | 0.08365 | 1.0032 | 11.047 | 0.03907 |
| 0.0120 | 1.0250 | 0.08012 | 1.0010 | 10.042 | 0.04260 |
| 0.0134 | 1.0250 | 0.07574 | 0.0982 | 9.033 | 0.04698 |
| 0.0035 | 1.0500 | 1.06061 | 1.0430 | 42.086 | 0.01611 |
| 0.0049 | 1.0500 | 1.05438 | 1.0402 | 30.061 | 0.02234 |
| 0.0065 | 1.0500 | 1.04741 | 1.0370 | 23.008 | 0.02930 |
| 0.0083 | 1.0500 | 1.03977 | 1.0334 | 18.007 | 0.03695 |
| 0.0095 | 1.0500 | 1.03478 | 1.0310 | 15.079 | 0.04193 |
| 0.0109 | 1.0500 | 1.02908 | 1.0282 | 13.076 | 0.04763 |
| 0.0120 | 1.0500 | 1.02469 | 1.0260 | 12.050 | 0.05202 |
| 0.0134 | 1.0500 | 1.01921 | 1.0232 | 11.019 | 0.05750 |
| 0.0148 | 1.0500 | 1.01385 | 1.0204 | 10.014 | 0.06286 |
| 0.0035 | 1.0750 | 2.02167 | 1.0680 | 50.000 | 0.01886 |
| 0.0049 | 1.0750 | 2.08413 | 1.0902 | 40.082 | 0.03003 |
| 0.0065 | 1.0750 | 2.00612 | 1.0620 | 26.092 | 0.03441 |
| 0.0083 | 1.0750 | 1.09706 | 1.0584 | 21.008 | 0.04347 |
| 0.0095 | 1.0750 | 1.09113 | 1.0560 | 18.042 | 0.04939 |
| 0.0109 | 1.0750 | 1.08433 | 1.0532 | 16.006 | 0.05619 |
| 0.0120 | 1.0750 | 1.07908 | 1.0510 | 14.058 | 0.06145 |
| 0.0134 | 1.0750 | 1.07250 | 1.0482 | 13.006 | 0.06803 |
| 0.0148 | 1.0750 | 1.06604 | 1.0454 | 11.082 | 0.07449 |
| 0.0165 | 1.0750 | 1.05837 | 1.0420 | 10.061 | 0.08216 |
| 0.0035 | 2.0000 | 2.09255 | 1.0930 | 57.014 | 0.02161 |
| 0.0049 | 2.0000 | 2.08413 | 1.0902 | 40.082 | 0.03003 |
| 0.0065 | 2.0000 | 2.07465 | 1.0870 | 30.077 | 0.03951 |
| 0.0083 | 2.0000 | 2.06417 | 1.0834 | 24.010 | 0.04999 |
| 0.0095 | 2.0000 | 2.05730 | 1.0810 | 21.005 | 0.05685 |
| 0.0109 | 2.0000 | 2.04941 | 1.0782 | 18.035 | 0.06475 |
| 0.0120 | 2.0000 | 2.04328 | 1.0760 | 16.067 | 0.07087 |
| 0.0134 | 2.0000 | 2.03561 | 1.0732 | 14.093 | 0.07855 |
| 0.0148 | 2.0000 | 2.02805 | 1.0704 | 13.051 | 0.08611 |
| 0.0165 | 2.0000 | 2.01904 | 1.0670 | 12.012 | 0.09512 |
| Monel 400 Pipe O.D. (in.) |
Wall Thickness of Monel 400 Pipe (inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| 0.0035 | 0.0028 | 0.0049 | 0.0083 | 0.0095 | 0.0065 | 0.0109 | 0.0120 | |
| 1/4 | 4800 | 3700 | 7000 | 9500 | ||||
| 1/8 | 10100 | 7900 | ||||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/4 | 2200 | 4000 | 4600 | 3000 | ||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 1 | 2900 | 3400 | 2200 | 3900 | 4300 | |||
|
NPS
|
Wall Thickness
|
Outside Diameter
|
Weight
|
Weight
|
|||
|
inch
|
milimeter
|
inch
|
milimeter
|
kg/Mtr
|
Schedule
|
Lb/ft
|
|
|
1/2″
|
0.0109
|
2.0769
|
0.0840
|
21
|
1.0268
|
40 STD
|
0.0851
|
|
0.0147
|
3.0734
|
1.0621
|
80 STD
|
1.0088
|
|||
|
3/4″
|
0.0113
|
2.0870
|
1.0050
|
27
|
1.0684
|
40 STD
|
1.0131
|
|
0.0154
|
3.0912
|
2.0195
|
80 STD
|
1.0474
|
|||
|
1″
|
0.0133
|
3.0378
|
1.0315
|
33
|
2.0501
|
40 STD
|
1.0679
|
|
0.0179
|
4.0547
|
3.0325
|
80 STD
|
2.0172
|
|||
|
1 1/4″
|
0.0140
|
3.0556
|
1.0660
|
42
|
3.0385
|
40 STD
|
2.0273
|
|
0.0191
|
4.0851
|
4.0464
|
80 STD
|
2.0997
|
|||
|
1 1/2″
|
0.0145
|
3.0683
|
1.0900
|
48
|
4.0048
|
40 STD
|
2.0718
|
|
0.0200
|
5.0080
|
5.0409
|
80 STD
|
3.0361
|
|||
|
2″
|
0.0154
|
3.0912
|
2.0375
|
60
|
5.0441
|
40 STD
|
3.0653
|
|
0.0218
|
5.0537
|
7.0480
|
80 STD
|
5.0022
|
|||
|
2 1/2″
|
0.0203
|
5.0516
|
2.0875
|
73
|
8.0629
|
40 STD
|
5.0793
|
|
0.0276
|
7.0010
|
11.0411
|
80 STD
|
7.0661
|
|||
|
3″
|
0.0216
|
5.0486
|
3.0500
|
89
|
11.0284
|
40 STD
|
7.0576
|
|
0.0300
|
7.0620
|
15.0272
|
80 STD
|
10.0253
|
|||
|
4″
|
0.0237
|
6.0020
|
4.0500
|
114
|
16.0073
|
10.0790
|
|
|
0.0337
|
8.0560
|
22.0318
|
14.0983
|
||||
|
6″
|
0.0188
|
4.0775
|
6.0625
|
168
|
19.0252
|
12.0924
|
|
|
0.0203
|
5.0516
|
20.0739
|
13.0923
|
||||
|
0.0219
|
5.0563
|
22.0318
|
14.0983
|
||||
|
0.0250
|
6.0350
|
25.0354
|
17.0021
|
||||
|
0.0280
|
7.0112
|
58.0263
|
40 STD
|
18.0974
|
|||
|
0.0312
|
7.0925
|
31.0334
|
21.0036
|
||||
|
0.0375
|
9.0525
|
37.0285
|
25.0031
|
||||
|
0.0432
|
10.0973
|
42.0561
|
80 XHY
|
28.0573
|
|||
|
0.0500
|
12.0700
|
48.0719
|
32.0708
|
||||
|
8″
|
0.0188
|
4.0775
|
8.0625
|
219
|
25.0233
|
16.0940
|
|
|
0.0203
|
5.0156
|
27.0198
|
18.0259
|
||||
|
0.0219
|
5.0563
|
29.0286
|
19.0661
|
||||
|
0.0250
|
6.0350
|
33.0308
|
20
|
22.0361
|
|||
|
0.0277
|
7.0036
|
36.0786
|
30
|
24.0696
|
|||
|
0.0322
|
8.0179
|
42.0352
|
40
|
28.0554
|
|||
|
0.0375
|
9.0525
|
49.0216
|
33.0041
|
||||
|
0.0406
|
10.0312
|
53.0085
|
60
|
35.0638
|
|||
|
0.0500
|
12.0700
|
64.0627
|
80 XHY
|
43.0388
|
|||
|
10″
|
0.0188
|
4.0775
|
10.0750
|
273
|
31.0588
|
21.0207
|
|
|
0.0219
|
5.0563
|
36.0689
|
24.0631
|
||||
|
0.0250
|
6.0350
|
41.0759
|
20
|
28.0035
|
|||
|
0.0307
|
7.0798
|
51.0002
|
30
|
34.0240
|
|||
|
0.0344
|
8.0738
|
56.0946
|
38.0231
|
||||
|
0.0365
|
9.0271
|
63.0301
|
40 STD
|
40.0483
|
|||
|
0.0438
|
11.0125
|
71.0852
|
48.0238
|
||||
|
0.0500
|
12.0700
|
81.0530
|
60 XHY
|
54.0735
|
|||
|
0.0594
|
15.0088
|
95.0969
|
80
|
64.0429
|
|||
|
12″
|
0.0188
|
4.0775
|
12.0750
|
324
|
37.0570
|
25.0222
|
|
|
0.0219
|
5.0563
|
43.0657
|
29.0309
|
||||
|
0.0250
|
6.0350
|
49.0713
|
33.0375
|
||||
|
0.0281
|
7.0137
|
55.0739
|
37.0420
|
||||
|
0.0312
|
7.0925
|
61.0735
|
41.0445
|
||||
|
0.0375
|
9.0525
|
73.0824
|
49.0562
|
||||
|
0.0406
|
10.0312
|
79.0727
|
53.0525
|
||||
|
0.0500
|
12.0700
|
97.0438
|
65.0415
|
||||
|
0.0562
|
14.0275
|
108.0966
|
73.0154
|
||||
|
14″
|
0.0188
|
4.0775
|
14.0000
|
356
|
41.0308
|
27.0732
|
|
|
0.0219
|
5.0563
|
48.0012
|
32.0233
|
||||
|
0.0250
|
6.0350
|
54.0685
|
20
|
36.0713
|
|||
|
0.0281
|
7.0137
|
61.0327
|
41.0172
|
||||
|
0.0312
|
7.0925
|
67.0939
|
45.0611
|
||||
|
0.0375
|
9.0525
|
81.0281
|
STD
|
54.0568
|
|||
|
0.0438
|
11.0125
|
94.0498
|
40
|
63.0441
|
|||
|
0.0500
|
12.0700
|
107.0381
|
XHY
|
72.0090
|
|||
| 0.0625 |
15.0875
|
132.0983
|
89.0278
|
||||
|
16”
|
0.0188
|
4.0775
|
16.0000
|
406
|
47.0290
|
21.0748
|
|
|
0.0219
|
5.0563
|
54.0980
|
36.0910
|
||||
|
0.0250
|
6.0350
|
62.0639
|
10
|
42.0053
|
|||
|
0.0281
|
7.0137
|
70.0268
|
47.0174
|
||||
|
0.0312
|
7.0925
|
77.0866
|
20
|
52.0275
|
|||
|
0.0344
|
8.0738
|
85.0677
|
57.0519
|
||||
|
0.0375
|
9.0525
|
93.0213
|
30 STD |
62.0578
|
|||
|
0.0438
|
11.0125
|
108.0433
|
72.0797
|
||||
|
0.0500
|
12.0700
|
123.0289
|
40 XHY |
82.0770
|
|||
|
18″
|
0.0219
|
5.0563
|
18.0000
|
457
|
61.0948
|
41.0588
|
|
|
0.0250
|
6.0350
|
70.0593
|
47.0393
|
||||
|
0.0281
|
7.0137
|
79.0208
|
53.0176
|
||||
|
0.0312
|
7.0925
|
87.0792
|
20
|
58.0939
|
|||
|
0.0375
|
9.0525
|
105.0144
|
STD
|
70.0588
|
|||
|
0.0438
|
11.0125
|
122.0369
|
30
|
82.0152
|
|||
|
0.0500
|
12.0700
|
139.0198
|
XHY
|
93.0450
|
|||
|
0.0562
|
14.0275
|
155.0904
|
40
|
104.0666
|
|||
|
0.0625
|
15.0875
|
172.0754
|
115.0978
|
||||
|
20″
|
0.0250
|
6.0350
|
20.0000
|
508
|
78.0547
|
52.0733
|
|
|
0.0282
|
7.0163
|
88.0458
|
59.0386
|
||||
|
0.0312
|
7.0925
|
97.0719
|
65.0604
|
||||
|
0.0375
|
9.0525
|
117.0075
|
20 STD
|
78.0598
|
|||
|
0.0438
|
11.0125
|
136.0305
|
91.0508
|
||||
|
0.0500
|
12.0700
|
155.0106
|
30 XHY
|
104.0130
|
|||
|
0.0594
|
15.0088
|
183.0378
|
40
|
123.0110
|
|||
|
0.0625
|
15.0875
|
192.0640
|
129.0328
|
||||
|
0.0688
|
17.0475
|
211.0368
|
141.0901
|
||||
|
24″
|
0.0250
|
6.0350
|
24.0000
|
610
|
94.0456
|
63.0413
|
|
|
0.0281
|
7.0137
|
106.0029
|
71.0183
|
||||
|
0.0312
|
7.0925
|
117.0573
|
18.0932
|
||||
|
0.0375
|
9.0525
|
140.0938
|
20 STD
|
64.0618
|
|||
|
0.0438
|
11.0125
|
164.0176
|
110.0219
|
||||
|
0.0500
|
12.0700
|
186.0923
|
XHY
|
125.0490
|
|||
|
0.0625
|
15.0875
|
232.0410
|
156.0028
|
||||
|
0.0688
|
17.0475
|
255.0148
|
40
|
171.0293
|
|||
|
0.0750
|
19.0050
|
277.0401
|
186.0233
|
||||
|
30″
|
0.0250
|
6.0350
|
30.0000
|
762
|
118.0318
|
79.0433
|
|
|
0.0281
|
7.0137
|
132.0851
|
89.0189
|
||||
|
0.0312
|
7.0925
|
147.0353
|
10
|
98.0925
|
|||
|
0.0375
|
9.0525
|
176.0731
|
STD
|
118.0648
|
|||
|
0.0438
|
11.0125
|
205.0983
|
138.0286
|
||||
|
0.0500
|
12.0700
|
234.0647
|
20 XHY
|
157.0530
|
|||
|
0.0625
|
15.0875
|
292.0066
|
30
|
196.0078
|
|||
|
0.0688
|
17.0475
|
320.0817
|
215.0380
|
||||
|
0.0750
|
19.0050
|
348.0988
|
234.0293
|
||||
|
36″
|
0.0250
|
6.0350
|
36.0000
|
914
|
142.0180
|
95.0453
|
|
|
0.0281
|
7.0137
|
159.0672
|
107.0196
|
||||
|
0.0312
|
7.0925
|
177.0133
|
10
|
118.0918
|
|||
|
0.0375
|
9.0525
|
215.0525
|
STD
|
142.0678
|
|||
|
0.0438
|
11.0125
|
247.0790
|
166.0353
|
||||
|
0.0500
|
12.0700
|
282.0372
|
20 XHY
|
198.0570
|
|||
|
0.0625
|
15.0875
|
351.0723
|
236.0128
|
||||
|
0.0688 |
17.0475
|
386.0487
|
259.0467
|
||||
|
0.0750 |
19.0050
|
420.0576
|
282.0353
|
||||
|
42″
|
0.0312
|
7.0925
|
42.0000
|
1067
|
206.0914
|
138.0911
|
|
|
0.0375
|
9.0525
|
248.0319
|
STD
|
166.0708
|
|||
|
0.0500
|
12.0700
|
33.0097
|
XHY
|
221.0610
|
|||
|
0.0750
|
19.0050
|
492.0163
|
330.0413
|
||||
|
48″
|
0.0375
|
9.0525
|
48.0000
|
1219
|
284.0112
|
STD
|
190.0738
|
|
0.0438
|
11.0125
|
331.0404
|
222.0487
|
||||
|
0.0500
|
12.0700
|
377.0822
|
XHY
|
253.0650
|
|||
|
0.0750
|
19.0050
|
563.0750
|
378.0473
|
||||
|
0.0875
|
22.0225
|
655.0969
|
440.0383
|
||||
|
Monel 400 Exhaust Pipes
|
Monel 400 Round Pipes
|
|
Schedule 40 WERKSTOFF NR. 2.4360 Pipes
|
ASTM B725 Monel 400 EFW Pipes
|
|
WERKSTOFF NR. 2.4360 Pipes material
|
Monel 400 Hexagonal Pipes
|
|
ASTM B165 Alloy 400 Capillary Pipes
|
ASTM B725 Monel 400 Custom Pipes
|
|
Small diameter Monel 400 Pipes
|
Monel 400 Rectangular Pipes
|
|
High pressure Nickel Monel 400 Pipes
|
Capillary ASTM B165 Alloy 400 Thin Pipes
|
|
400 Monel Clad Pipes
|
Monel 400 Bush Hex Pipes
|
|
Monel 400 Thin Wall Pipes
|
200 Alloy Square Pipes
|
|
Monel 400 Rectangular Tube
|
WERKSTOFF NR. 2.4360 elliptical and Oval Tube
|
|
Monel 400 SCH 80 Tube
|
Monel 400 Alloy SCH 40 Tube
|
|
Monel 400 Bellows Tubes
|
Monel 400 High-strength capillary tubing
|
|
Monel 400 Transmission Tubes
|
ASME SB725 Monel 400 precision Tubes
|
|
Astm B730 Monel 400 Electropolished Tube
|
Monel 400 Instrumentation Tube
|
|
Monel 400 Electropolished Tube
|
Monel 400 Seamless Hollow Tube
|
|
Astm B730 Monel 400 Oil & Gas Tubing
|
Monel 400 Condenser Tube
|
|
Monel 400 SCH 80 Tube
|
Monel 400 SCH 40 Tube
|
|
Monel 400 Aero engine Tubes
|
Monel 400 cold drawn seamless Tubes
|
|
Monel 400 Furnace Tubes
|
Monel 400 Gas Tubing
|
|
Monel 400 Cold drawn seamless tubing (CDS)
|
Monel 400 Hot finished seamless tubing (HFS)
|
|
Monel 400 High Pressure Tubes
|
Monel 400 Alloy Precision Tubing
|
|
ASME SB725 Monel 400 Capillary Tubing
|
Monel 400 Bourdon Tubes
|
|
WERKSTOFF NR. 2.4360 Finned Tubes
|
Monel 400 Drawn over mandrel (DOM)
|
|
Monel 400 Furnace Tubes
|
Monel 400 Aerospace Engine Tubes
|
|
Monel 400 seamless straight tubing
|
Monel 400 seamless coil tubing
|
| Types | Out diameter | Length | Wall thickness |
|---|---|---|---|
| NB Sizes (available) | 1/8” ~ 8” | Upto 6 Meters | SCH 40 /SCH 10 /SCH 160/ SCH 5 / SCH 80 |
| Monel 400 Seamless tube (as per need) | 5.00 milimeter ~ 203.02 milimeter | as per need | |
| Monel 400 Welded tube (available + as per need) | 5.00 milimeter ~ 1219.02 milimeter | 1.00 ~ 15.00 milimeter |
| WALL THICKNESS INCHES | OD +/- INCHES | OD INCHES |
|---|---|---|
| 0.0025 - 0.0065 | 0.0005 | 1/2" - 1" incl0.0 |
| Over 0.0065 - 0.0134 | 0.0010 | |
| 0.0025 - 0.0065 | 0.0008 | 1 - 1-1/2" incl0.0 |
| Over 0.0065 - 0.0134 | 0.0010 | |
| 0.0025 - 0.0049 | 0.0010 | 1-1/2" - 2" incl0.0 |
| Over 0.0049 - 0.0083 | 0.0011 | |
| Over 0.0083 - 0.0148 | 0.0012 | |
| 0.0032 - 0.0065 | 0.0012 | 2" - 2-1/2" incl0.0 |
| Over 0.0065 - 0.0109 | 0.0013 | |
| Over 0.0109 - 0.0165 | 0.0014 | |
| 0.0032 - 0.0165 | 0.0014 | 2-1/2" - 3-1/2" incl0.0 |
| Over 0.0165 - 0.0220 | 0.0020 | |
| 0.0083 - 0.0165 | 0.0020 | 3-1/2" - 5" incl0.0 |
| Over 0.0165 - 0.0220 | 0.0025 |
| STANDARD | UNS | WERKSTOFF NR. | EN | JIS | GOST | BS | AFNOR |
| Monel 400 | N04400 | 2.4360 | NiCu30Fe | NW 4400 | МНЖМц 28-2,5-1,5 | NA 13 | NU-30M |
| Element | Yield Strength (0.2%Offset) | Melting Point | Density | Tensile Strength | Elongation |
| Monel 400 | MPa – 240, Psi – 35,000 | (2460 °F) 1350 °C | 8.8 g/centimeter3 | MPa – 550, Psi – 80,000 | 40 % |
| Grade | Mn | C | Cr | S | Si | Fe | Cu | Ni |
| Monel 400 | 2.000 maximum | 0.030 maximum | – | 0.024 maximum | 0.050 maximum | 2.050 maximum | 28.00 to 34.00 | 63.000 minimum |
