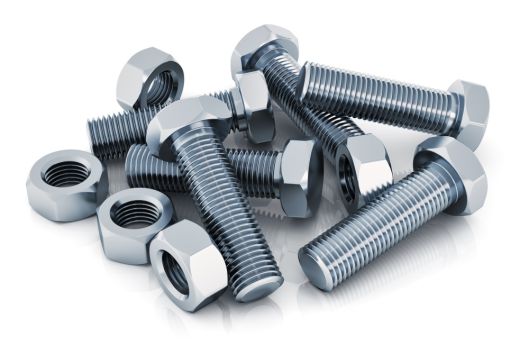

At Rajat Steel & Engg. Co. , we manufacture and supply a comprehensive range of high-quality fasteners designed to meet the rigorous demands of industrial applications. Our product portfolio includes bolts, nuts, screws, studs, and custom fasteners available in stainless steel, carbon steel, alloy steel, and specialty Materials . Engineered for superior strength, corrosion resistance, and precise fit, our fasteners ensure reliable performance across diverse sectors including construction, automotive, oil & gas, and manufacturing. Committed to quality and timely delivery, we are your trusted partner for Fastening solutions that hold your projects together with confidence.

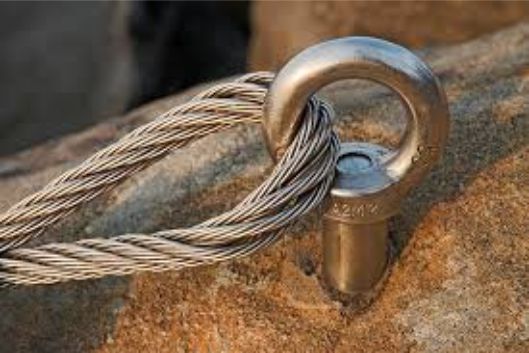

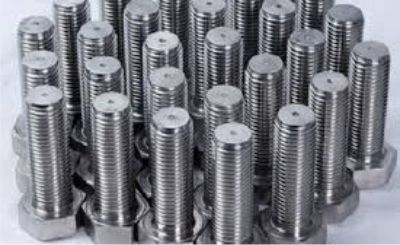

Stainless Steel 310 Bolts are intended for high temperature and high pressure services. The specification for these bolts is ASTM A193. There are different lengths ranging from 3mm to 200mm and different sizes ranging from M3 through M56 and 3/6 inches to 2 inches with custom sizes available as well. The Stainless Steel 310 Bolts can vary in types and shapes such as the hex head bolts, square bolts, U bolts, eye bolts, t bolts and so on. They are all used in different applications for different fitting purposes.

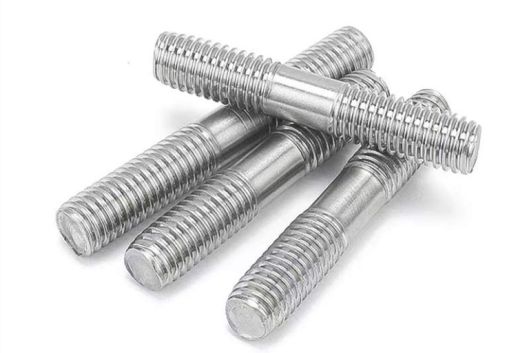

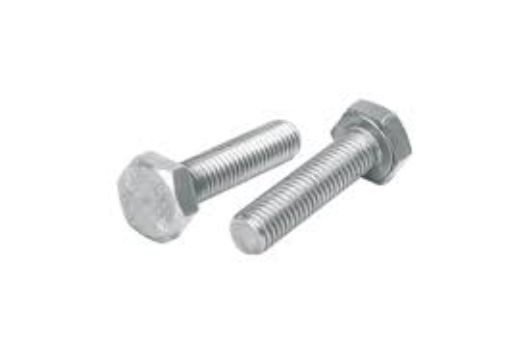

Rajat Steel is a leading supplier and manufacturer of these bolts in all dimensions and scales. The material of the Alloy 310 Hex Bolt and others is a chromium nickel alloy with 24% chromium and 19% nickel with carbon, manganese, silicon, phosphorus and sulfur in it. The different types are useful in serving different purposes. The SS 310 Studs are used to fit two threaded components together as the studs have threads on both ends. The strength of the material is comparable to the 304 grade of the stainless steel. The material has 205MPa minimum yield strength and 515MPa minimum tensile strength.
The hardness of the ASTM A193 310 Stainless Steel Nuts is 217 HB in the Brinell hardness scale. The composition, mechanical properties and the physical properties of the Stainless Steel 310 Fasteners make them applicable for high temperature, high pressure services such as heat exchangers, condensers, pulp and paper industry, pharmaceuticals, petrochemicals and many others. Please contact us for more information on the different types of the bolts such as the SS UNS S31000 Stainless Steel U-bolts and others with their prices.
| Stainless Steel 310 Fasteners Specifications | |
|---|---|
| Specifications Chart | ASTM A193, ASME SA 193 |
| ASTM Standard | International Standards DIN, BS, ASTM |
| Length | 3 millimeter to 200 millimeter |
| Size | M3 to M56 | 3/6 inch to 2 inch | Available Sizes |
| Screw Types | Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw, etc. |
| Bolts Types | Hex Head Bolts, Square Bolts, Hex Bolts, T Bolts, Eye Bolts, U Bolts, Countersunk Bolts, Lag Bolts, etc. |

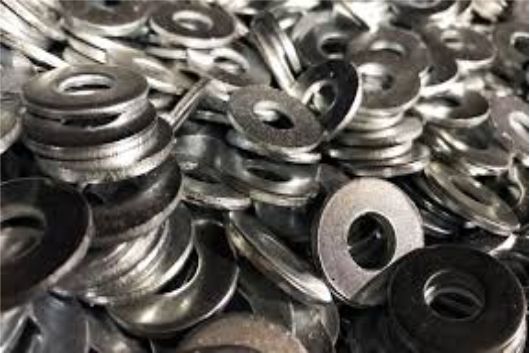

| Washer Types | Lock Washer, Star Washers, Machine Washers, Split Washer, Sealing Washer, etc. |
| Nut Types | Coupling Nut, Wing Nut, Hex Head Nut, Panel Nut, Square Nut, Acorn Nuts, T Nut, Eye Nut, Dome Nut, Lock Nut, etc. |

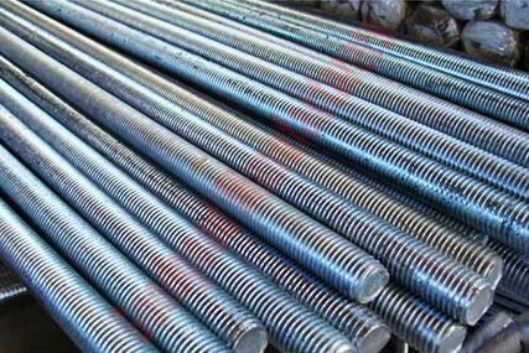

| Studs Types | Double Ended Studs, Threaded Rod, Tie Bars, Tie Rods, etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 310 (Min) | – | – | – | – | – | 24.0 | – | 19.0 | – |
| 310 (Max) | 0.25 | 2.0 | 1.50 | 0.045 | 0.030 | 26.0 | – | 22.0 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50 mm) min | Hardness Rockwell B (HR B) max |
Hardness Brinell (HB) max |
|---|---|---|---|---|---|
| 310 | 515 | 205 | 40 | 95 | 217 |
| Grade | Density (kg/m³) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (m/m/°C) |
Thermal Conductivity (W/m·K) |
Specific Heat 0–100°C (J/kg·K) |
Electrical Resistivity (nΩ·m) |
|||
|---|---|---|---|---|---|---|---|---|---|
| 0–100°C | 0–315°C | 0–538°C | at 100°C | at 500°C | |||||
| 310 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 310 | S31000 | – | – | 1.4841 | – | – | SUS 310 |
| Nut Size milimeter |
Diameter* milimeter |
Height milimeter |
||
|---|---|---|---|---|
| Hex Nut | Jam Nut | Nylock Nut | ||
| 2 | 4 | 1.6 | 1.2 | - |
| 2.5 | 5 | 2 | 1.6 | - |
| 3 | 5.5 | 2.4 | 1.8 | 4 |
| 4 | 7 | 3.2 | 2.2 | 5 |
| 5 | 8 | 4 | 2.7 | 5 |
| 6 | 10 | 5 | 3.2 | 6 |
| 7 | 11 | 5.5 | 3.5 | - |
| 8 | 13 | 6.5 | 4 | 8 |
| 10 | 17 | 8 | 5 | 10 |
| 12 | 19 | 10 | 6 | 12 |
| 14 | 22 | 11 | 7 | 14 |
| 16 | 24 | 13 | 8 | 16 |
| 18 | 27 | 15 | 9 | 18.5 |
| 20 | 30 | 16 | 10 | 20 |
| Type | Mechanical Properties for Stainless Steel Plates | |||||||
|---|---|---|---|---|---|---|---|---|
| ASTM(A240M) | Others(JIS) | Tensile Properties | Hardness | |||||
| Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | HBW | HRBW | ||||
| AusteniticSteels | 304 | SUS304 | 205 | 515 | 40 | 201 | 92 | |
| 304H | 205 | 515 | 40 | 201 | 92 | |||
| 304L | SUS304L | 170 | 485 | 40 | 201 | 92 | ||
| 304N | SUS304N1 | 240 | 550 | 30 | 217 | 95 | ||
| 304LN | SUS304LN | 205 | 515 | 40 | 217 | 95 | ||
| 309S | SUS309S | 205 | 515 | 40 | 217 | 95 | ||
| 310S | SUS310S | 205 | 515 | 40 | 217 | 95 | ||
| 316 | SUS316 | 205 | 515 | 40 | 217 | 95 | ||
| 316L | SUS316L | 170 | 485 | 40 | 217 | 95 | ||
| 316H | 205 | 515 | 40 | 217 | 95 | |||
| 316LN | SUS316LN | 205 | 515 | 40 | 217 | 95 | ||
| 317L | SUS317L | 205 | 515 | 40 | 217 | 95 | ||
| 317LN | SUS317LN | 240 | 550 | 40 | 217 | 95 | ||
| 321 | SUS321 | 205 | 515 | 40 | 217 | 95 | ||
| 347 | SUS347 | 205 | 515 | 40 | 201 | 92 | ||
| N08904/904L | SUS890L | 220 | 490 | 35 | 196 | 90 | ||
| S31254 | 310 | 655 | 35 | 223 | 96 | |||
| SUS317J2 | 345 | 690 | 40 | 250 | 100 | |||
| Metric Size | UNC Size | ||
|---|---|---|---|
| Size (MM) | Weight per Metre (kg) | Size (Inch) | Weight per Metre (kg) |
| M2 | 0.0187 | ||
| M2.5 | 0.030 | ||
| M3 | 0.044 | ||
| M3.5 | 0.060 | ||
| M4 | 0.078 | ||
| M5 | 0.124 | ||
| M6 | 0.177 | ¼” | 0.194 |
| M8 | 0.319 | 5/16” | 0.323 |
| M10 | 0.500 | 3/8” | 0.469 |
| 7/16” | 0.650 | ||
| M12 | 0.725 | ½” | 0.896 |
| M14 | 0.970 | 9/16” | 1.096 |
| M16 | 1.330 | 5/8” | 1.342 |
| M18 | 1.650 | ||
| M20 | 2.080 | ¾” | 2.021 |
| M22 | 2.540 | 7/8” | 2.756 |
| M24 | 3.000 | 1” | 3.638 |
| M27 | 3.850 | 1 1/8” | 4.545 |
| M30 | 4.750 | 1 ¼” | 5.718 |
| M33 | 5.900 | 1 3/8” | 6.842 |
| M36 | 6.900 | 1 ½” | 8.281 |
| M39 | 8.200 | 1 5/8” | 9.726 |
| M42 | 9.400 | 1 ¾” | 11.231 |
| M45 | 11.000 | 1 7/8” | 13.038 |
| M48 | 12.400 | 2” | 14.741 |
